25 kg Alumina Automatic Bulk Bag Filling Machine

FOB Reference Price:Get Latest Price
$6,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
PVPE
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Building Material Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, Turkey, Philippines, India, Russia, Australia
Showroom Location:
None
Condition:
New
Application:
Chemical, Food, MEDICAL
Packaging Type:
Bags
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220 V,50/60 Hz
Place of Origin:
Jiangsu, China
Brand Name:
CWE
Dimension(L*W*H):
800mm(L),1600mm(W),2200mm(H)
Certification:
SGS
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Energy saving
Product:
25 kg Alumina Automatic Bulk Bag Filling Machine
Packing Material:
sand,cement,powders,tile adhesives,renders and granulated rubber
Filling Speed:
5 to 8 bags per minute,depending on product density,valve size,
Air Consumption:
34 m3/h
Accuracy:
0.5-1%
Bag Weight:
up to 50 Kg
Valve Length:
up to 165mm
Valve Size:
Suit 50 mm(2') Valve Nozzle
Bag Width:
300-600mm
Bag Length:
300-900mm
Supply Ability
Supply Ability:
100 Set/Sets per Year 25 kg Alumina Automatic Bulk Bag Filling Machine
Packaging & Delivery
Packaging Details
Wooden Case
Port
Shanghai
Video Description
Product Description

QUALITY IS NOT EXPENSIVE; IT IS PRICELESS.

PEOPLE REMEMBER QUALITY LONG AFTER THE PRICE IS FORGOTTEN.

25 kg Alumina Automatic Bulk Bag Filling Machine is designed to fill free flowing,non clumping dry powder or granulates into valve bag.

SPECIFICATIONS
Material
Lime,Gypsum,Sands, Cement , Dry Mortar,Tile adhesives, PVC Powder, Alumina, Zirconium, Carbon Black, Titaum White, Breadcrumbs,Granulated Rubber, Renders and similar free flowing products.
Packing Scope
5-50 Kg
Capacity
7-8t/h,depending on product density,valve size,bag weight,quality of bag, accuracy required and product flow characteristics
Filling Speed
1-8 bags per minute
Accuracy
±0.5-1% depending on filling speed ,product bulk, flow characteristics, particle size, infeed system and bag size
Air System Compressed Air
34CMH@800Kpa(8.0bar),Clean Dry Air
Size Footprint
800mm(W)×1600mm(D)×2350mm(H)

Main Features

1. Constructed from Mild Steel And powered Coated, so it’s built to last and makes cleaning a breeze
2. High accuracy via patented load cell technology
3. Easy clean out and changeover of new products without contamination via submarine style rear hatch
4. After Bradwood Packaging installs your 25 kg Alumina Sack Automatic Bulk Bag Packaging Machine you get hands on training and documentation, to maximise your ROI
5. The air flow feed system is capable of high production rates while maintaining good accuracies.
6. Operator friendly easy set and forget controls
7. Universal and industrial components give the machinery extra long life cycles the way machinery should be built
8. Manufactured to comply above and beyond Australian standards
9. Pneumatic and electrical control equipment housed in positive pressure enclosure , ensuring dust free environment.
10. Built from structural steel giving maximum strength with minimal dimensions
11. Additional second stage filling hand wheel for adjusting slow speed flow of produc
12. Industrial high strength anti- wearing butterfly valve specifically designed for abrasive products
13. Variable body height to suit your bag sizes and product line
14. The heart of 25 kg Alumina Automatic Bulk Bag Filling Machine is your PLC controller interface, it’s simple to operate Your operators will have it all at the tip of their fingers.
15. Don’t worry about security, because you can add password protected operator access levels
16. The flexible and modular Packaging System can be interfaced with all filling systems and check weighers, so the same control panel operate all packers and weighers

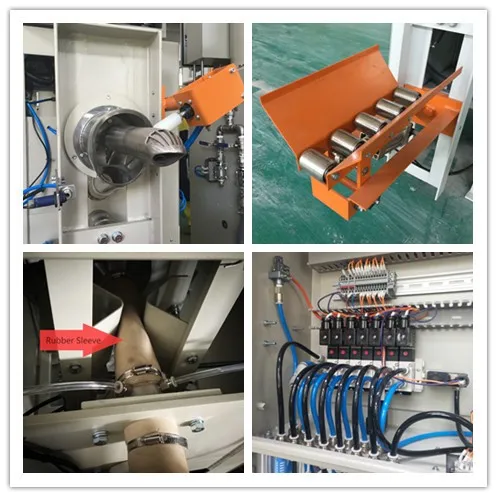

Detailed Images
Packing Materials
  Notes: Not Limited(Suitable for powders and granulates within 7mm)
Partners

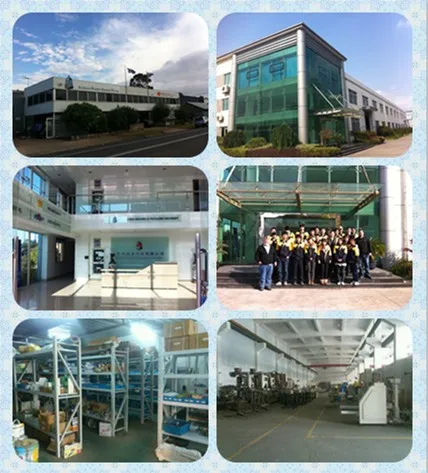

Conpany Information

  EXHIBITION

Certifications
Packing & Delivery
Sales Network

FAQ

Why don't you answer the follwing questions for us to help you find what you want ?
1, the material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, packing weight (kg/bag), capacity (t/day)
3, detailed description of production line


If you want to have more information about our 25 kg Alumina Automatic Bulk Bag Filling Machine, please contact me.
